MODEL 1930
FEATURES

Quad output high voltage power supply: +25 kV, +5 to 8 kV, +200 to 800 V, −150 V

  • Four output voltages: 25 kV, 8 kV, 800 V, and −150 V
  • Low output ripple
  • Tight line and load regulation: under 200 mV at full load
PRODUCTS & RESOURCES
DESCRIPTION

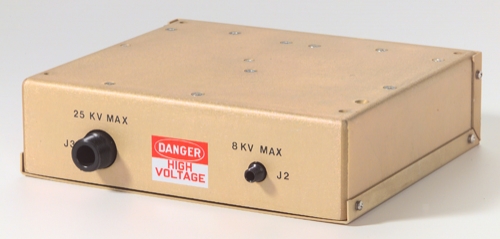

Model 1930 is a +25 kV quad output high voltage power supply with low ripple and tight load and line regulation. The four high voltage outputs feature a low output ripple of under 200 mV peak-to-peak at full load. The tight line and load regulation are also under 200 mV at full load.

SPECIFICATIONS
Voltage
Input voltage28 VDC
Input current3.0 A
Anode Voltage
Output voltage25 kV
Line regulation< 25 V
Load regulation< 7.5 V
Output ripple< 15 V peak-to-peak
Focus Voltage
Output voltage5 to 8 kV
Line regulation< 6.5 V
Load regulation13 V
Output ripple1 V peak-to-peak
G1 Voltage
Output voltage−150 V
Line regulation< 2.5 V
Load regulation< 3 V
Output ripple< 0.5 V peak-to-peak
G2 Voltage
Output voltage200 to 800 V
Line regulation< 0.75 V
Load regulation< 3 V
Output ripple< 0.5 V peak-to-peak

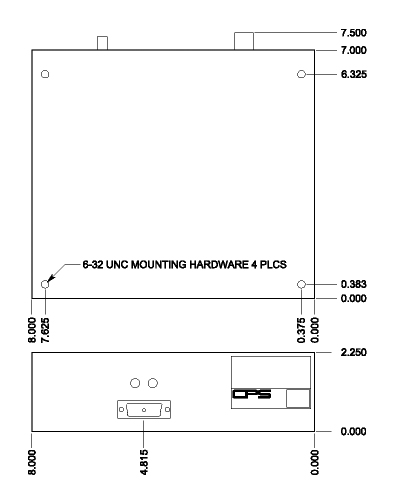

Mechanical
Dimensions8.0 × 2.3 × 7.0 in.
PRICES
Model Description Price Order Qty.
1 2–9
1930Quad output high voltage power supply: +25 kV, +5 to 8 kV, +200 to 800 V, −150 VCallCall
